Strips Wire Vertical Enamel Coating Machine For Flat WireΦ1-10mm² And 8-50mm²

Name: Strips Wire Vertical Enamel Coating Machine For Flat WireΦ110mm And 850mm
Brand: Newlead
Price: 1 USD

Quality Strips Wire Vertical Enamel Coating Machine For Flat WireΦ1-10mm² And 8-50mm² wholesale

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Newlead

Model Number : QHL(B)8000 - 4 - 12 / 5 - 11

Price : Negotiation

MOQ : 1 Set/Sets

Certification : ISO CE

Supply Ability : 1 set 150 days

Delivery Time : 150 days

Packaging Details : wooden pallet

Usage : Enameling

Name : Small flatwire double - furnace enamelling machine

Type : QHL(B)8000 - 4 - 12 / 5 - 11

Condition : New / Used

Warranty : 1 Year

Power consumation : About 1500kw.h

wire gage of production : 1 - 15mm

number of thread of production : 9(4+5)threads (two ovens)

production speed : 3-20 m/min

painting courses : 11-12

Valid length of oven : 8mm

Contact Now

Strips wire Vertical Enameling Machine for flat wireΦ1-10mm² and 8-50mm²

1:Developments of catalyst combustion and heat exchange efficiency.Heat dissipation by radiation has been decreased by modifications of heat insulations.
2:Exhausted heat has been effectively transferred to heating oven,dryer,steam generator and so on by stainless steel pipe.
3:Exhaust gas treating catalyst is standard configuration.Effective 320 degree,do not need any auxiliary heating,reducing carbon and hydrogen content in the exhaust gas.
4:Three times fully catalyst burning.No smell.Zero Pollution.

Product Description

1. Wire range	QZB.QZYB.QZGB.QQ
2.Size	Φ1-10mm²(Max thickness-2,width-8),8-50mm²(Max thickness-4,width-13)
3.Lines	4+5 groove width: 10 and 14mm
4. Painting pass	11+12
4. Painting style	felt+dies
5.Distance of lines	19mm+25mm
6.Maximum speed	30m/min
7.Take-up spool specifications	PND500mm
8.The total installed capacity	about 300kw

Strips Wire Vertical Enamel Coating Machine For Flat WireΦ1-10mm² And 8-50mm²

Our Services

Pre-sale training:

In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product

After-sale maintenance service is:

1,Both mechanical and electrical parts are provided 2 years limited warranty.
2,Manufacturing experience with more than 20years
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.

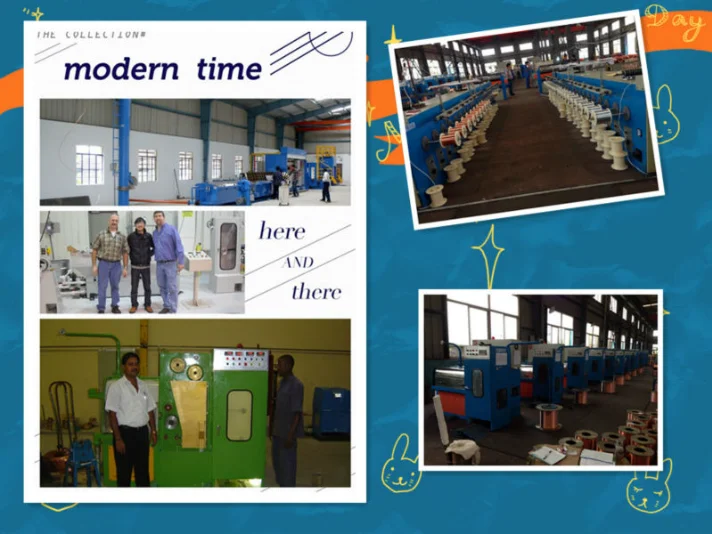

Clients' Plant

Strips Wire Vertical Enamel Coating Machine For Flat WireΦ1-10mm² And 8-50mm²
